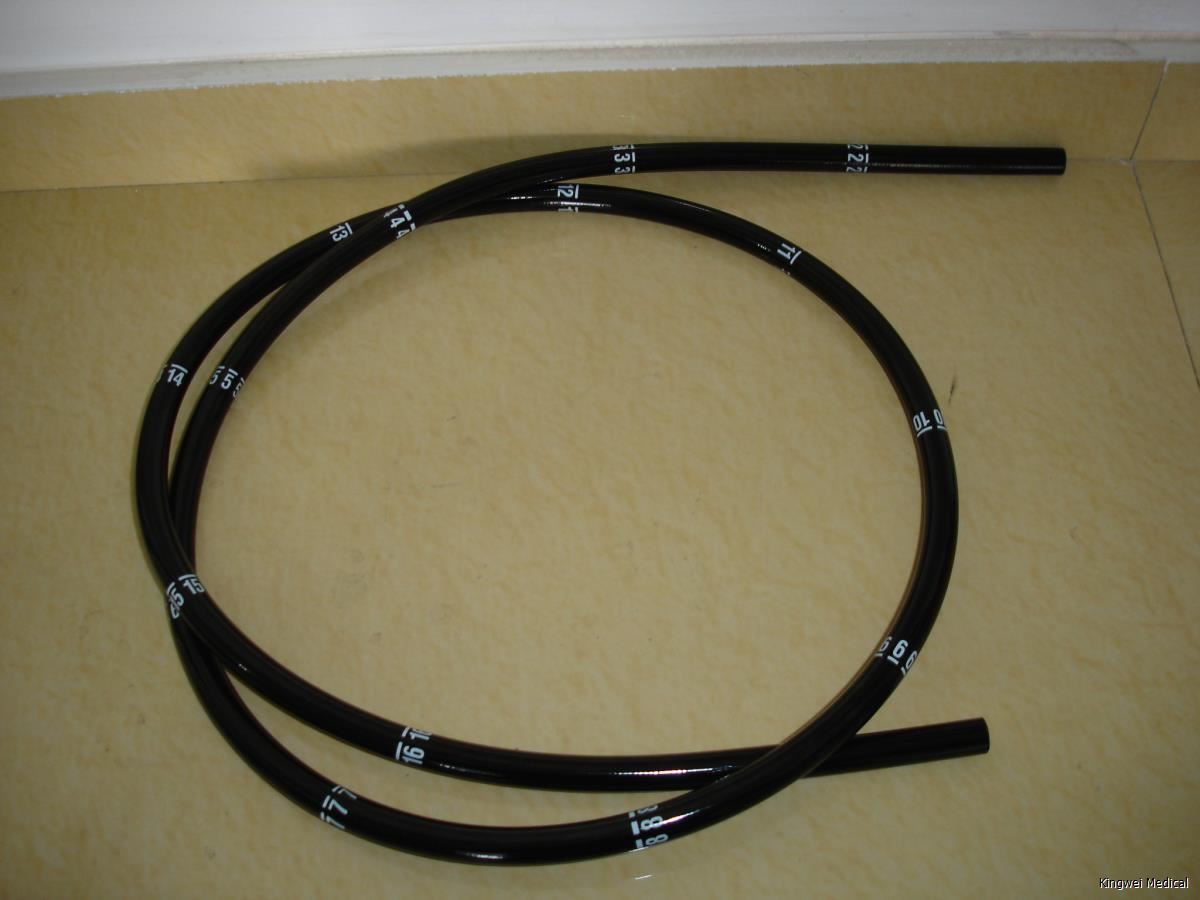

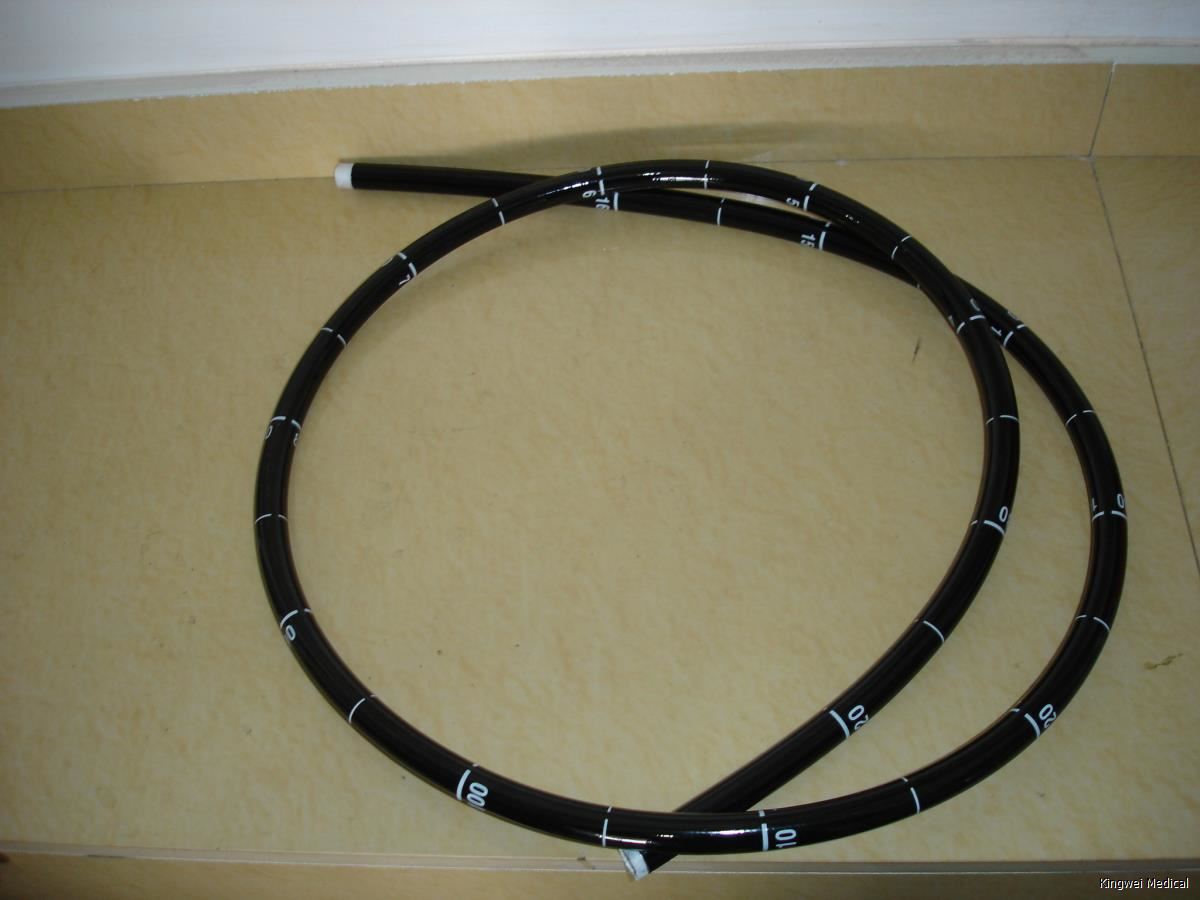

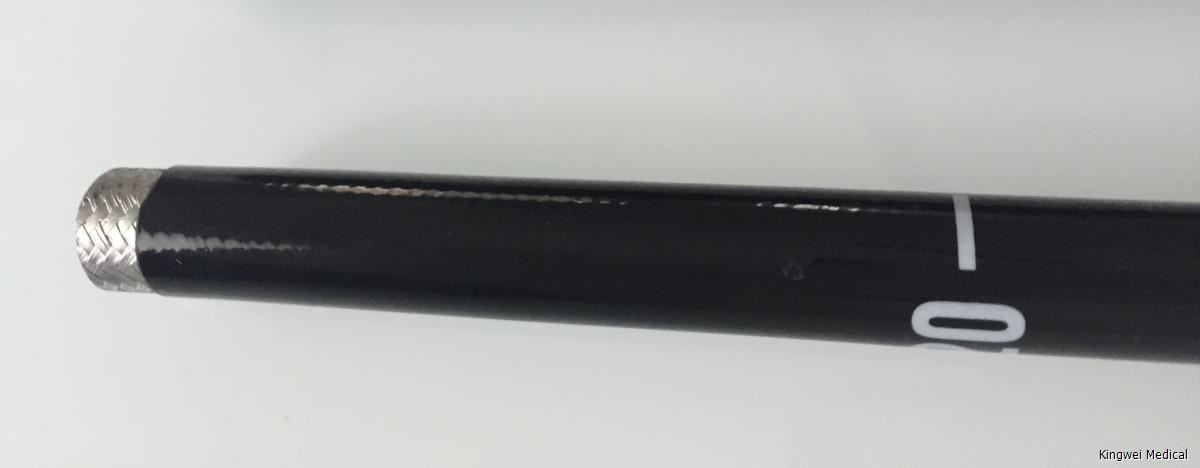

Insertion Tube

Item

Model

Description

1

Olympus CF-100L Veterinarian single coil

13x3000mm

2

Olympus CF-100L

13.2x1635mm

3

Olympus CF-100TL, CF-140L, CF-Q140L

12.9x1627mm

4

Olympus CF-1T20I/1T20L, CF-1T100L, CF-1T140L, CF-1T160I, CF-1T160L

13.7x1625mm

5

Olympus CF-Q160L, CF-Q160AL,  And CF-Q160ZL

12.9x1635mm

6

Olympus CF-Q160i, CF-Q145i, CF-Q180i, CF-Q165i

12.8x1285mm

7

Olympus CF-Q180AL

12.8x1645mm

8

Olympus CF-HQ190L

12.75x1593mm

9

Olympus PCF-H190L

11.45x1601mm

10

Olympus PCF-160AL

11.75x1645mm

11

Olympus PCF-160AI

11.7x1285mm

12

Olympus PCF-130L, PCF-140L

11.5x1625mm

13

Olympus PCF-Q180AL

11.75x1645mm

14

Olympus PCF-H180AL

12.2x1640mm

15

Olympus CF-240i

12.0x1275mm

16

Olympus PCF-P240AL

10.6x1645mm

17

Olympus CF-Q260AL, CF-240DL

12.4x1635mm

18

Olympus CF-240L

12.2x1630mm

19

Olympus SIF-Q180

9.25x1974mm

20

Olympus TJF-30, TJF-100, TJF-130, TJF-140F, TJF-140R

12.51250mm

21

Olympus TJF-160F, TFJ-260V

11.5x1230mm

22

Olympus JF-140R, JF-200, JF-230, JF-240

11x1235mm

23

Olympus GIF-100

9.6x1020mm

24

Olympus GIF-Q140

10.7x1005mm

25

Olympus GIF-P140

8.5x1022mm

26

Olympus GIF-XQ140, GIF-V70

9.5x1020mm

27

Olympus GIF-1T30, GIF-1T130, GIF-1T140

11.4x1010mm

28

Olympus GIF-XQ20, GIF-130, GIF-140

9.8x1015mm

29

Olympus GIF-Q160, GIF-Q145, GIF-Q200

9.7x1022mm

30

Olympus GIF-160

8.85x1025mm

31

Olympus GIF-XP160

6.1x1015mm

32

Olympus GIF-N180

5.25x1095mm

33

Olympus GIF-H180

10.15x1015mm

34

Olympus GIF-H180J

10.2x1020mm

35

Olympus GIF-H190

9.45x1041mm

36

Olympus GIF-HQ190

10.15x1025mm

37

Olympus GIF-Q180, GIF-Q165, GIF-Q150

9.2x1020mm

38

Olympus GIF-N30

5.3x1000mm

39

Olympus GIF-1T240

11x1022mm

40

Olympus GIF-XP240

8x1040mm

41

Olympus GIF-XQ240, GIF-SP240

9.1x1030mm

42

Olympus GIF-2T200

12.7x1000mm

43

Olympus GIF-2T240

11.8x1022mm

44

Olympus GIF-H260

9.8x1022mm

45

Olympus GIF-P230

8.6x1015mm

46

Olympus GIF-XQ230

9.4x1005mm

47

Olympus GIF-Q260

9.4x1030mm

48

Olympus GIF-XP260

6.8x1020mm

49

Olympus GIF-100 Veterinarian

9.8x3000mm

50

Olympus BF-160, BF-Q180

5.2x585mm

51

Olympus BF-1T260

6.2x580mm

52

Olympus BF-P160

4.9x590mm

53

Olympus BF-P240

5.2x523mm

54

Olympus LF-TP

5.2x600mm

55

Olympus LF-1

4.05x635mm

56

Olympus LF-2

4.2x600mm

57

Olympus CYF3

5.3x370mm

58

Olympus BF-1T20/30/40

6.2x535mm

59

Olympus BF-200

5.7x525mm

60

Olympus CYF5, CYF-4

5.4x349mm

61

Olympus LF-GP, ( LF-V,)

4.1x600mm

62

Olympus BF-1T160

6.1x585mm

63

Olympus BFMP-160F

4.6x595mm

64

Olympus URF-P5

2.8x682mm

65

Olympus LF-DP

3.2x620mm

66

Olympus BF-1T20D, BF-1T240, BF-1T30, BF-240, BF-30

6.1x550mm

67

Olympus BF-3C160

3.9x595mm

68

Olympus BF-P20, BF-P20D, BF-P30, BF-P40, BF-P200, BF-P240

5.25x550mm

69

Olympus CHF-P10, CHF-P20, CYF, CYF-2

5.3x364mm

70

Olympus CHFC-B20

3.5x723mm

71

Olympus ENF-P4

3.85x320mm

72

Olympus ENF-P3

3.85x270mm

73

Olympus HYF-XP

3.2x255mm

74

Pentax EC-3800 Series with fittings

13x1665mm

75

Pentax EC-3800 Series without fittings

13x1665mm

76

Pentax EC-3872K without fittings

13.3x1665mm

77

Pentax EC-3872K with fittings

13.3x1665mm

78

Pentax EC-3400, EC-3470LK, EC-3485LK with fittings

11.55x1665mm

79

Pentax EC-3400, EC-3470LK without fittings

11.6x1665mm

80

Pentax EC-38 SHORT with fittings

13x1474mm

81

Pentax EC-38 SHORT without fittings

13x1474mm

82

Pentax EC-34 SHORT with fittings

11.5x1474mm

83

Pentax EC-34 SHORT without fittings

11.5x1474mm

84

Pentax EG-2900 Series without fittings

9.9x1060mm

85

Pentax EG-2900 Series with fittings

9.9x1060mm

86

Pentax EG-2730K, EG-2770K Series without fittings

9.1x1050mm

87

Pentax EG-2730K, EG2770K with fittings

9.1x1060mm

88

Pentax EG-2400 Series without fittings

8x1060mm
